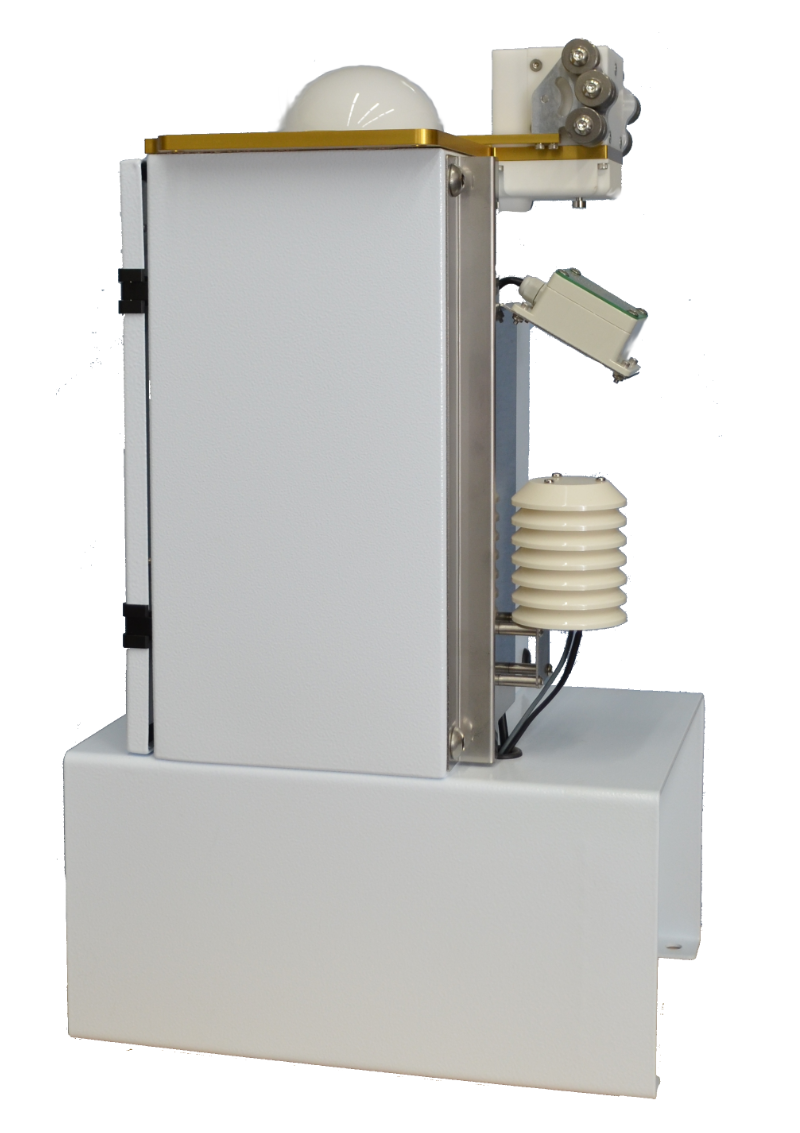

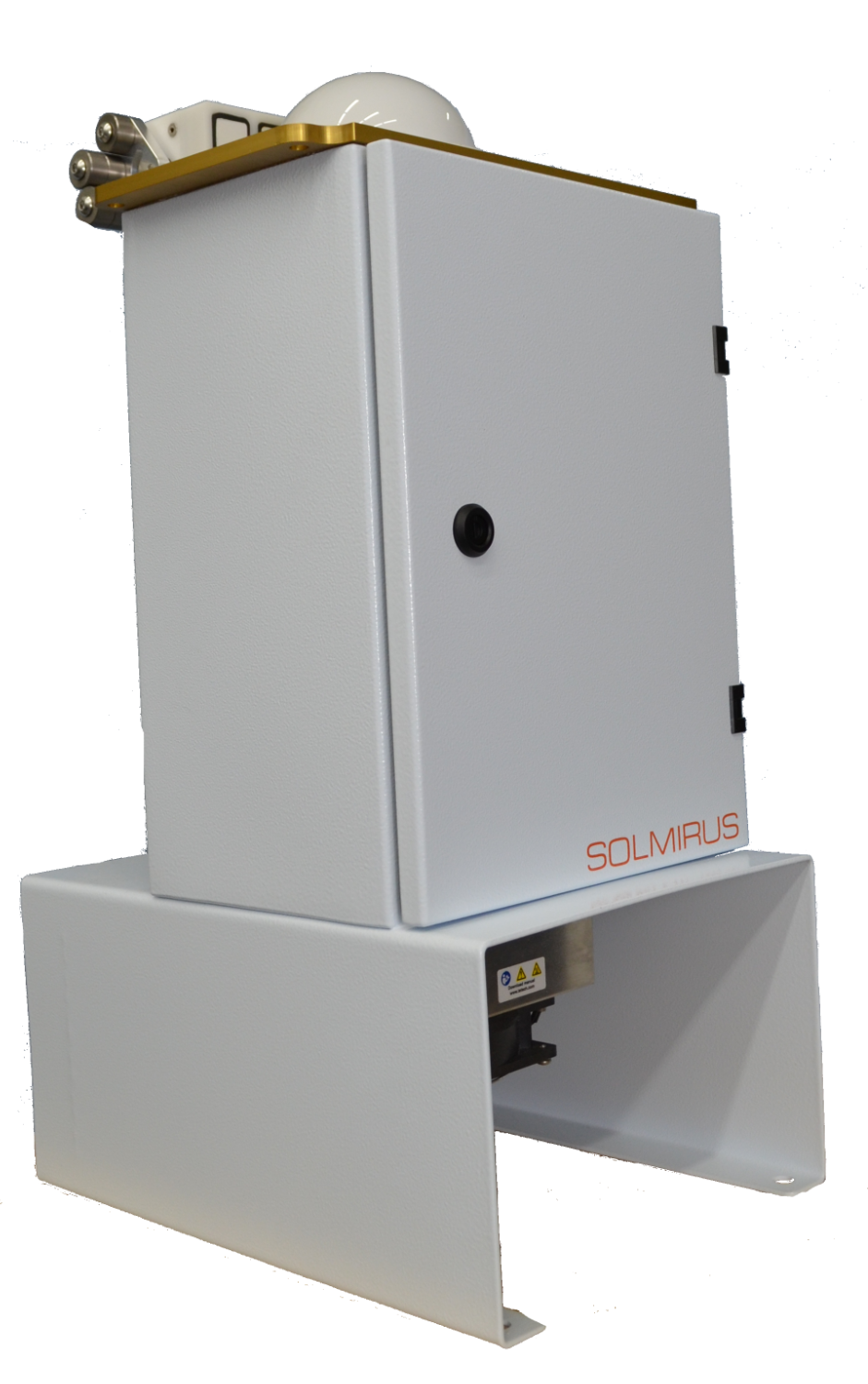

ASIS M1i - Infrared

All Sky Imaging System


The Solmirus All Sky Imaging System M1 (ASIS-M1i) is a dedicated purpose sky imaging and analysis instrument designed to operate autonomously or as a component in an instrument cluster. The ASIS is a ground based cloud detection and sky analysis system with applications ranging from astronomy, to solar forecasting, to a variety of meteorological applications.

In contrast to the ASIVA, the ASIS is designed for single purpose production applications in mind. The ASIS comes in two models the ASIS-M1i (Infrared) and the ASIS-M1v (Visible).


Data Products / Measurement

  • 24/7 Cloud/no cloud reporting
  • Calibrated Spectral Radiance images
  • Sky/cloud temperature (brightness and color) measurements
  • Cloud cover and height determination
  • Sky/cloud opacity/transmission determination
  • Water vapor determination
  • More on Infrared Analysis ...

Technical Specifications

  • 640 x 512 Infrared (IR) microbolometer focal plane array with internal shutter
  • Hard carbon-coated proprietary IR lens offering 180 degree field-of-view (FOV)
  • Hatch Subsystem used for superior all-sky blackbody reference subtraction
  • Dual external blackbody mast for real-time instrument response/offset correction
  • Peltier heating/cooling Enclosure Thermal Management System
  • White Powder-coated Weatherproof Enclosure
  • Stainless steel and aluminum construction
  • Dimensions: 12”W x 24”D x 39”H
  • Weight: base unit ~110lbs
  • Mounting: stainless steel base (with mounting holes)
  • On board data analysis and image processing
  • Raw data can be saved for complete post-processing analysis
  • Web based User Interface
  • REST API for report operations & automation

System Options

  • Connection type: Ethernet (Fiber/Cat5)
  • IR filters to suit specific application
  • Software analysis and data product options
  • Post-processing analysis software
  • Precipitation sensor
  • External RH and Temperature sensor
  • Large capacity storage options
  • Training/Installation/Maintenance plans
